DTC 6

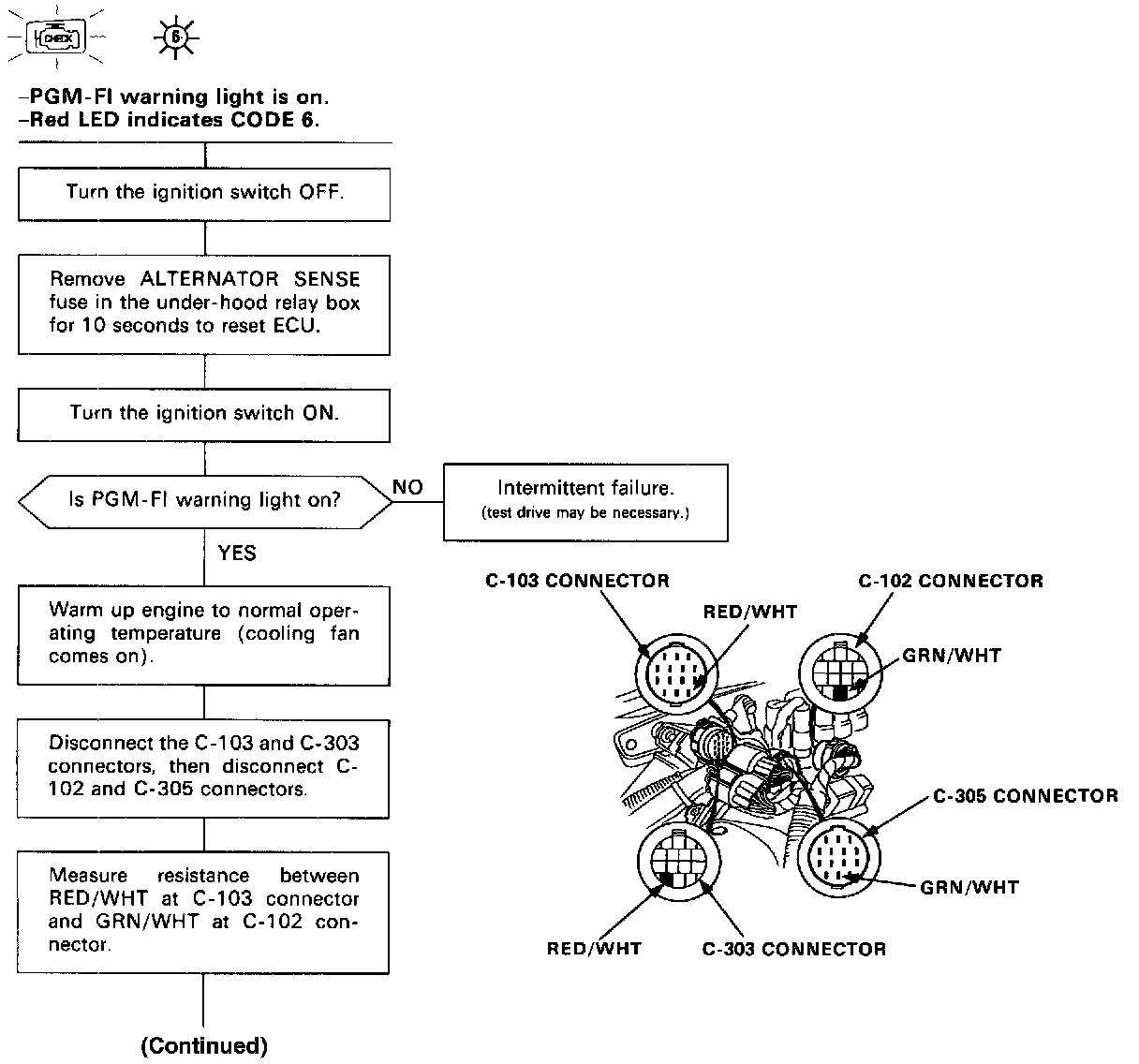

Self-diagnosis Red LED indicator blinks six times: Most likely a problem in the Coolant Temperature (TW) Sensor Circuit.

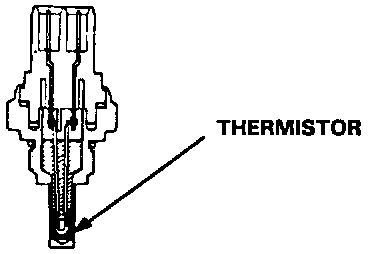

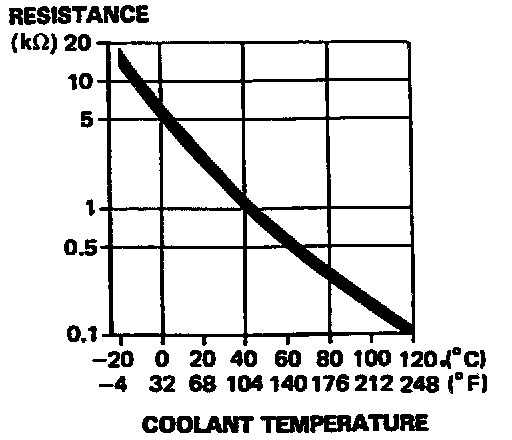

The TW sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the coolant temperature increases as shown below.
