DTC 4

COUPE ONLY

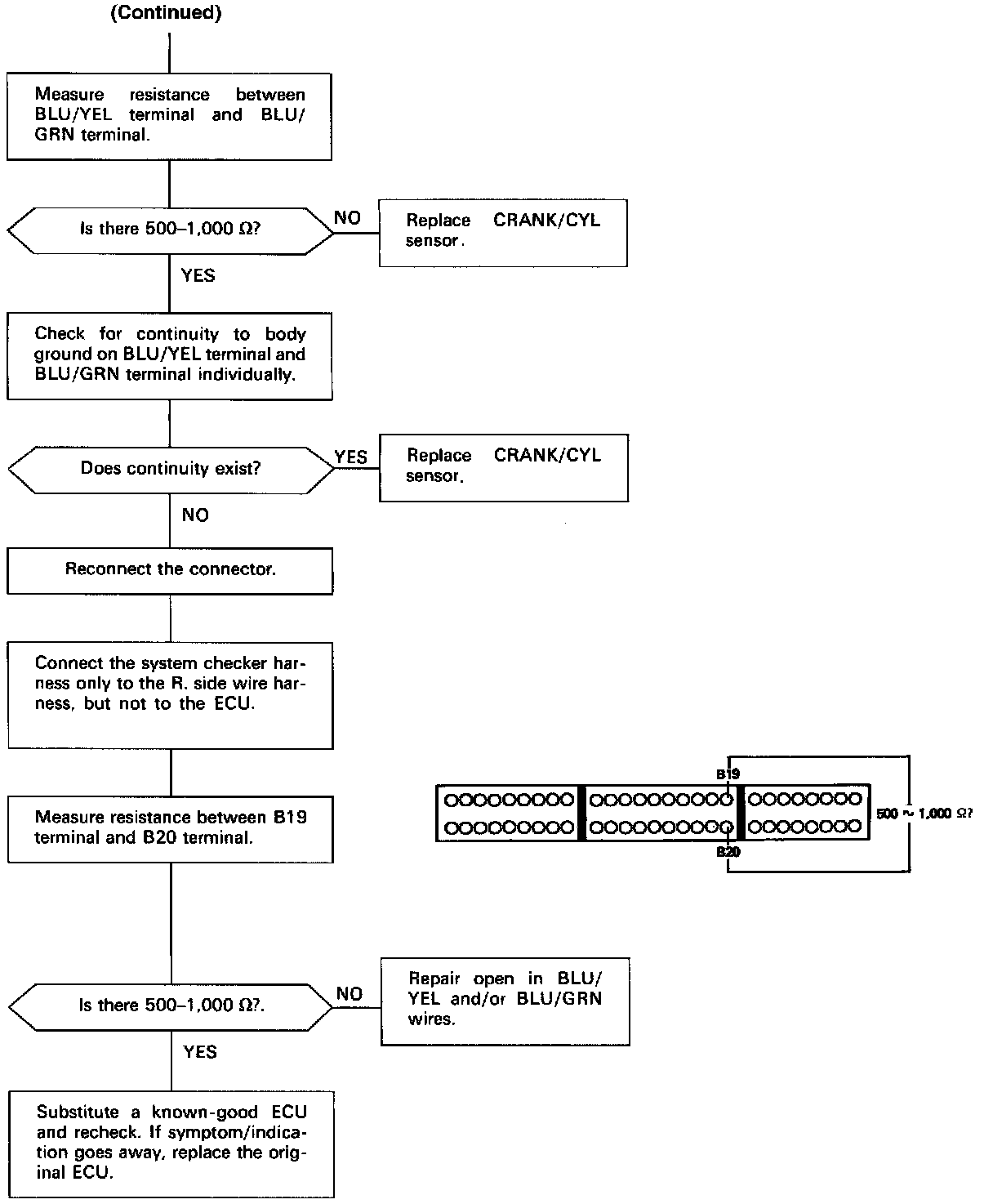

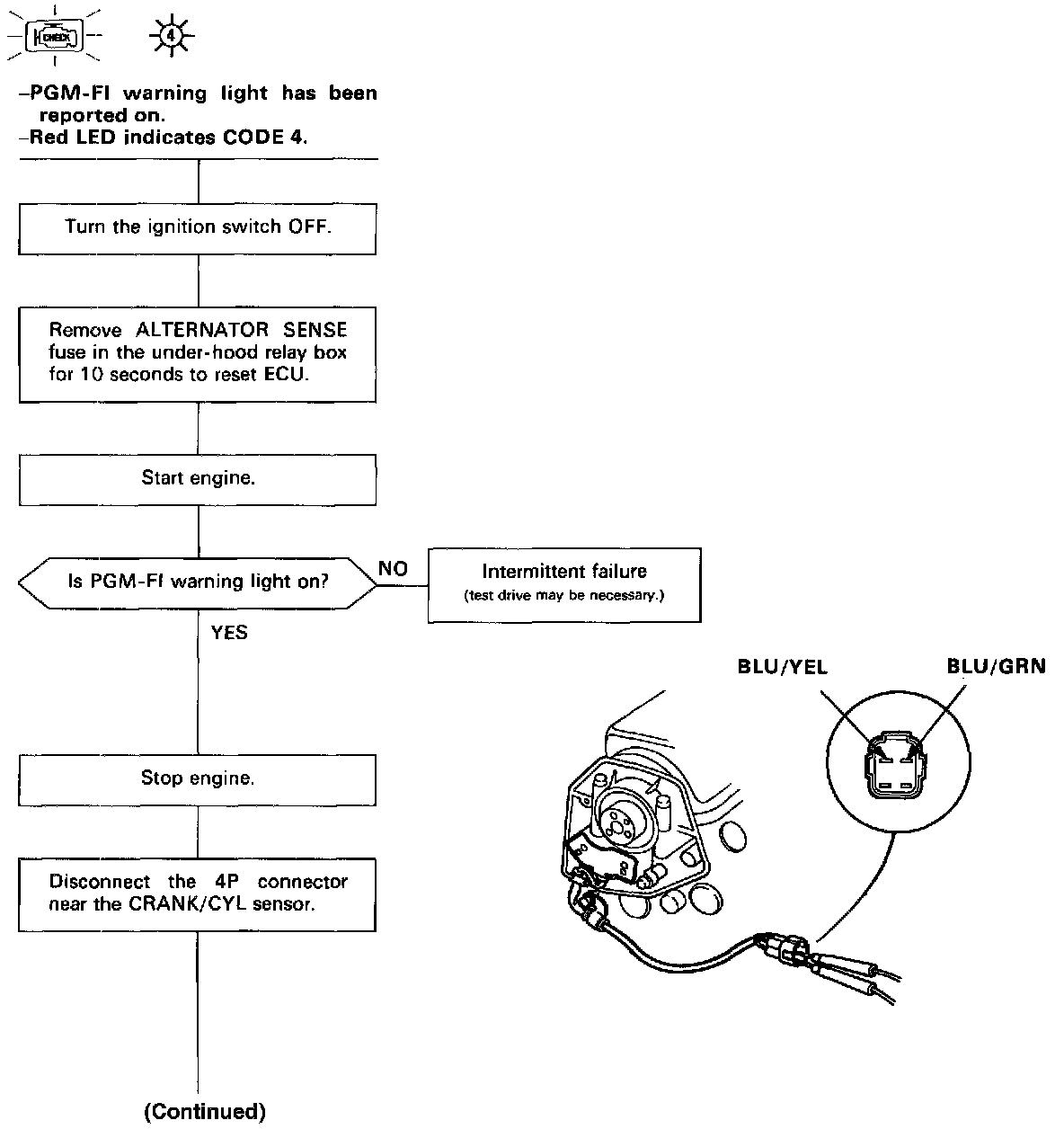

Self-diagnosis Red LED indicator blinks four times: A problem in the CRANK Circuit of the CRANK/CYL Sensor.

The CRANK sensor determines timing for fuel injection and ignition of each cylinder and also detects engine RPM. The CYL sensor detects the position of No.1 cylinder for sequential fuel injection to each cylinder.
