DTC 14

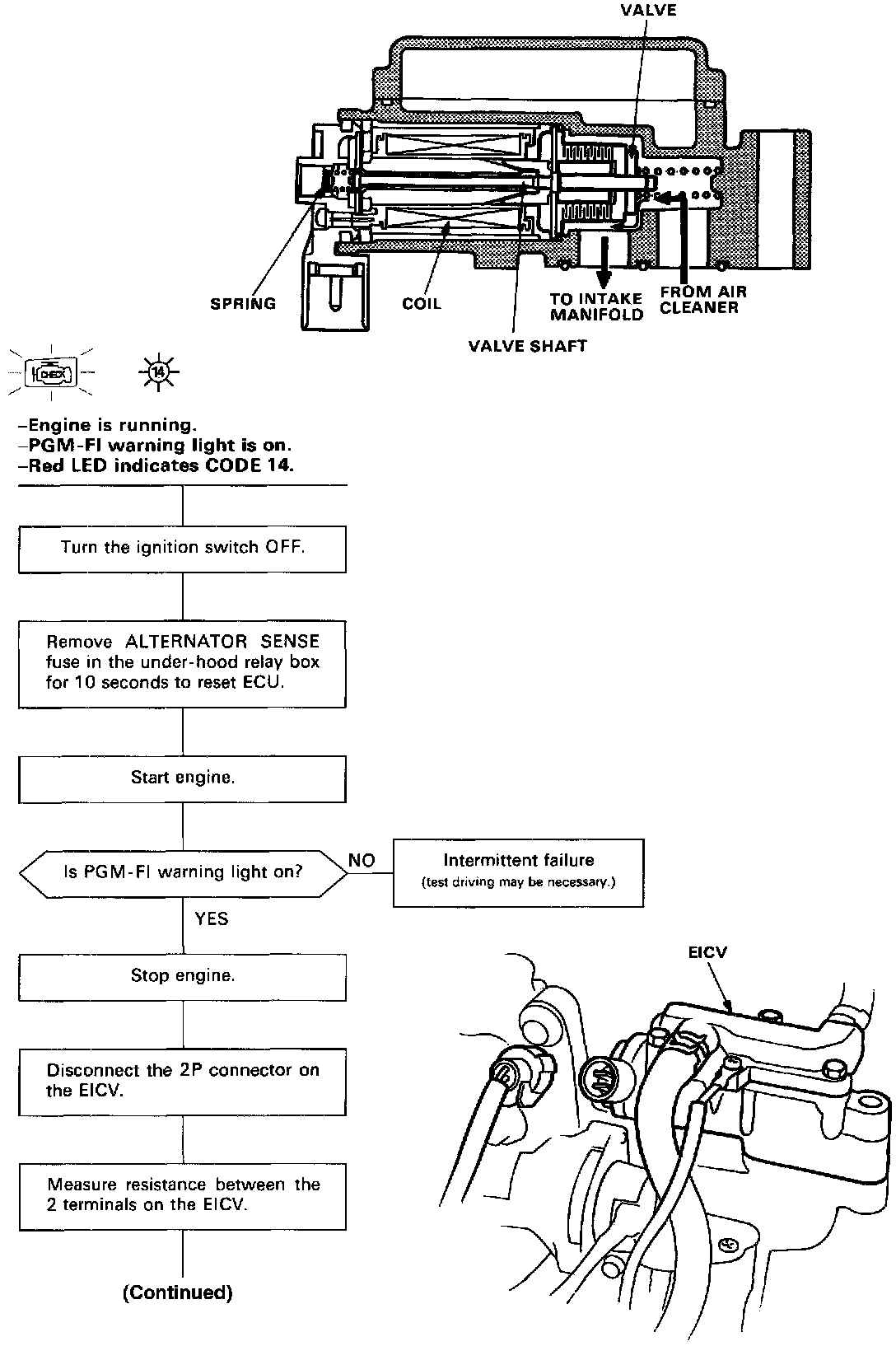

Self-diagnosis Red LED indicator blinks fourteen times: A problem in the Electronic Idle Control Valve (EICV) circuit.

The EICV changes the amount of air bypassing the throttle body in response to a current signal from the ECU in order to maintain the proper idle speed.
