Acura
>>
1987
>>
Integra L4-1590cc 1.6L DOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

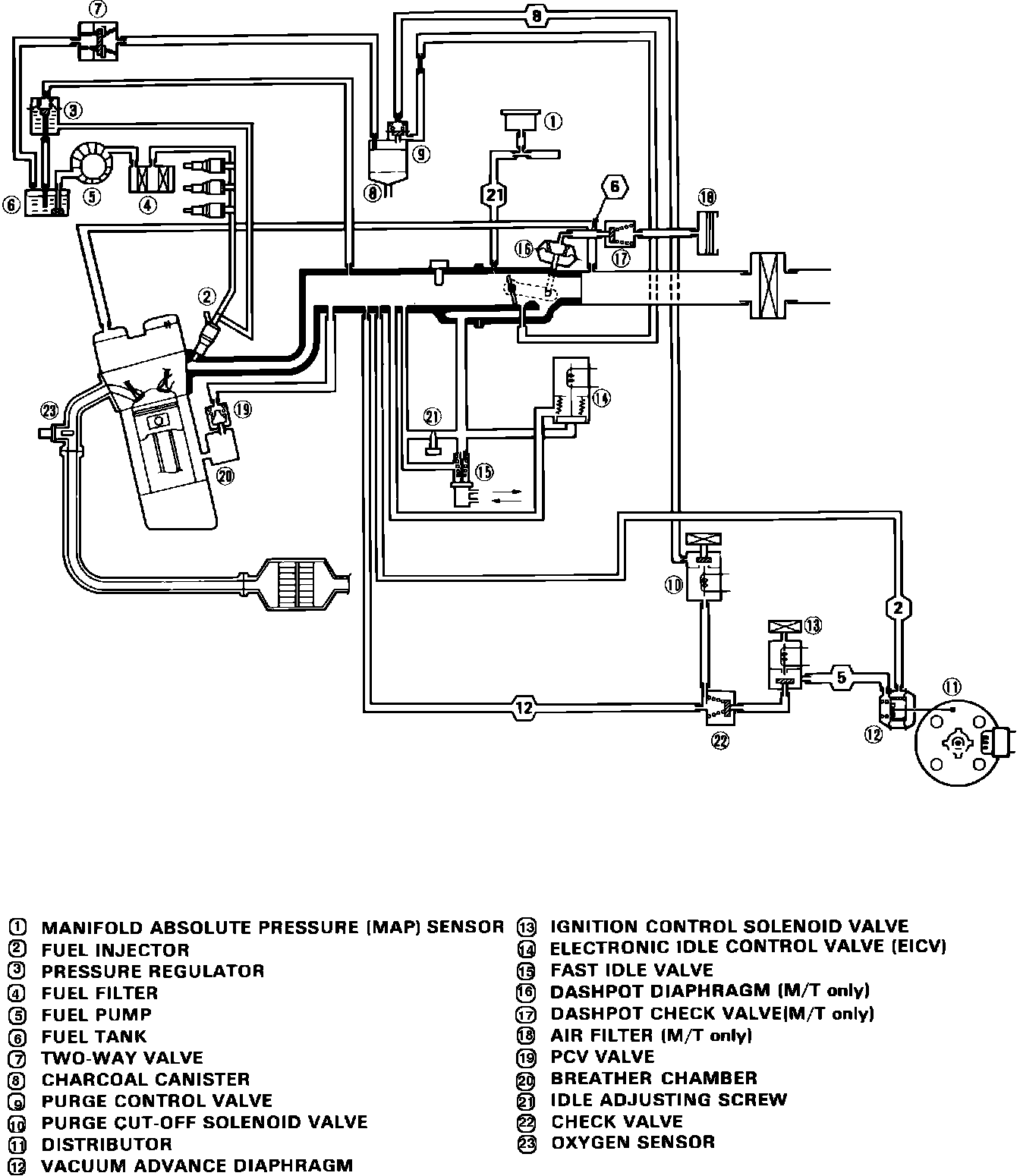

Fig. 1 Emission Control Vacuum Hose Routing
Fig. 1 Emission Control Vacuum Hose Routing
Fig. 1 Emission Control Vacuum Hose Routing.:
