Sedan

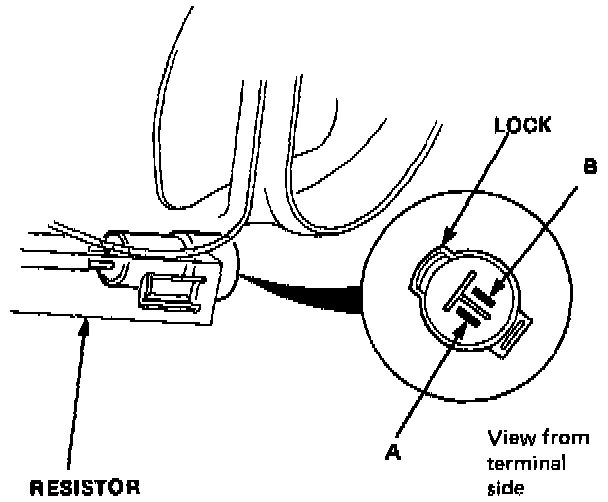

Radiator Fan Resistor:

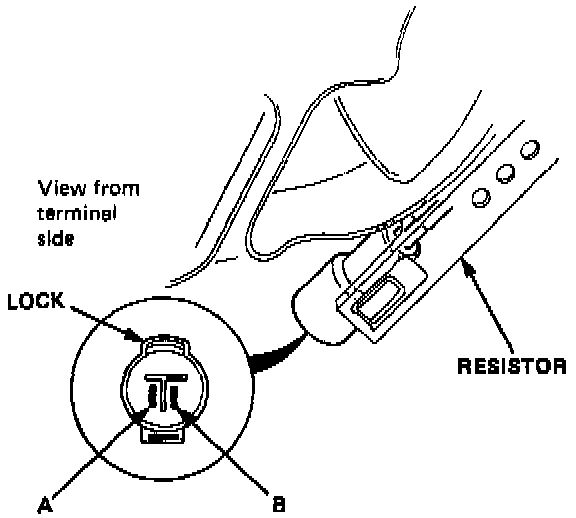

Condenser Fan Resistor:

Resistor Test
1. Disconnect the 2-P connector from the resistor.
2. Using an ohmmeter, measure resistance between the A and B terminals. Replace the resistor if the resistance is not within specifications.

NOTE: Resistance will vary with the resistor temperature; specifications are at 20°C (70° F).

Radiator Fan Resistor
Resistance: 0.9-1.1 ohms

Condenser Fan Resistor
Resistance: 0.5-0.7 ohms
