Compressor Clutch Coil: Testing and Inspection

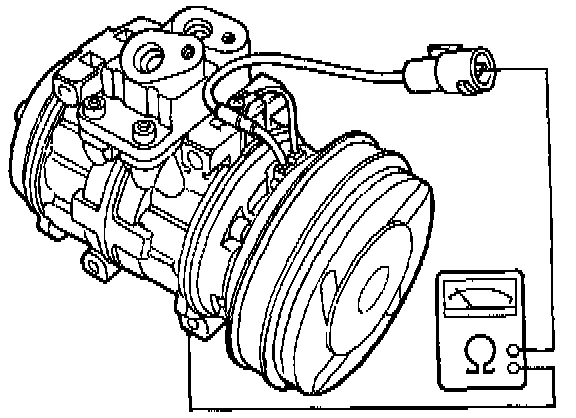

- Check resistance of the stator coil:

Stator Coil Resistance: 3.75 ± 0.2 ohm at 20°C (68°F)

If resistance is not within specifications, replace the coil.
