Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Temperature Sensor
1. Remove the front grille.

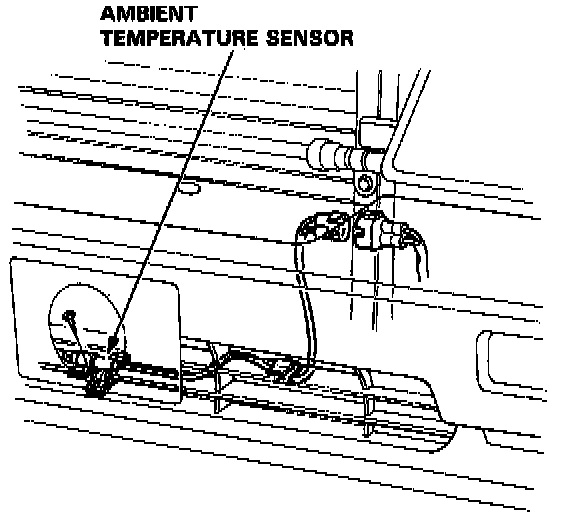

2. Remove the screw, disconnect the wire harness and then remove the ambient temperature sensor.

NOTE: Be careful not to damage the front grille and front bumper.

3. Install the ambient temperature sensor in the reverse order of removal.
