Legend V6-2494cc 2.5L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

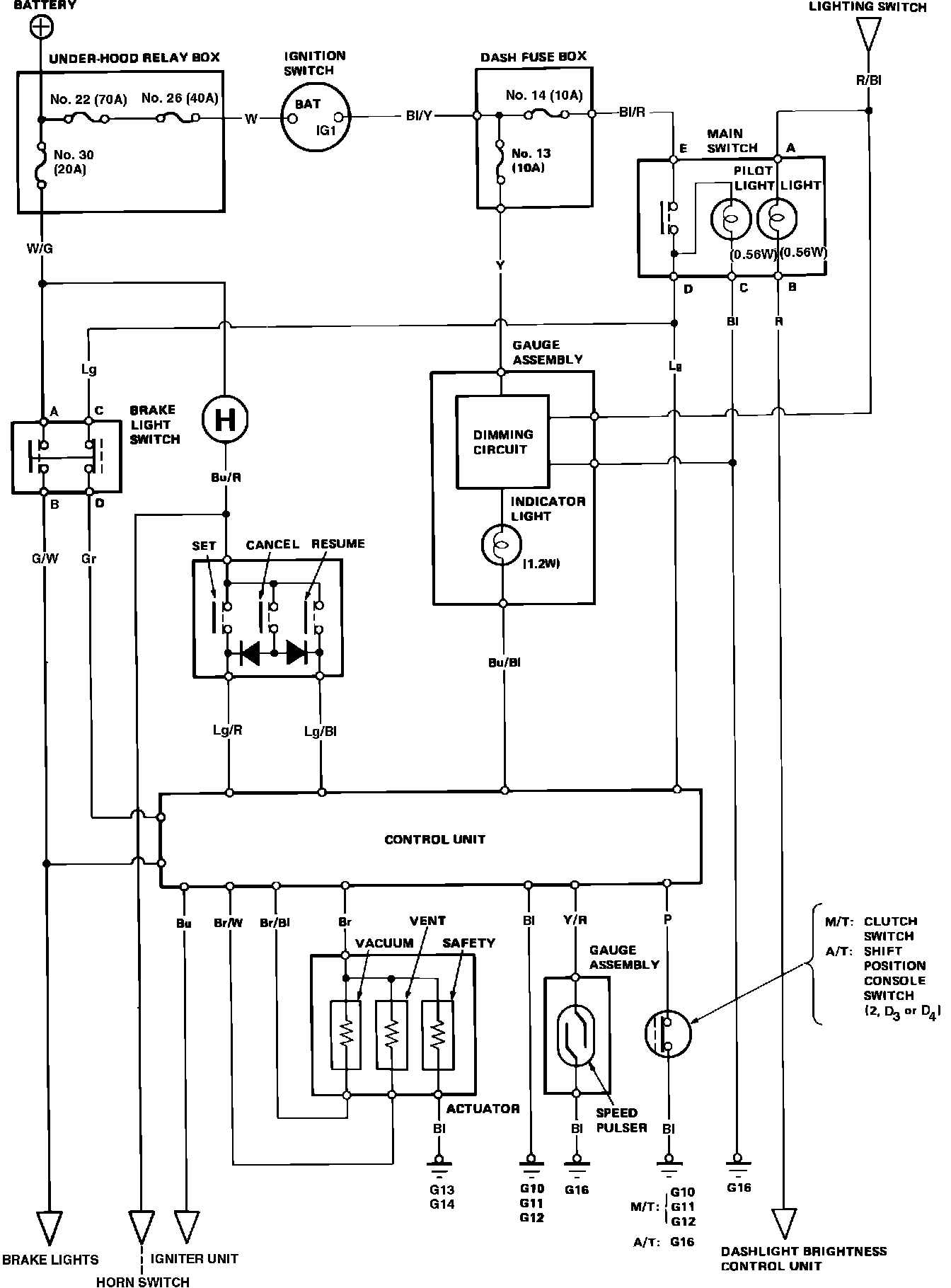

Fig. 7 Cruise Control Wiring Circuit.:
