DTC 12

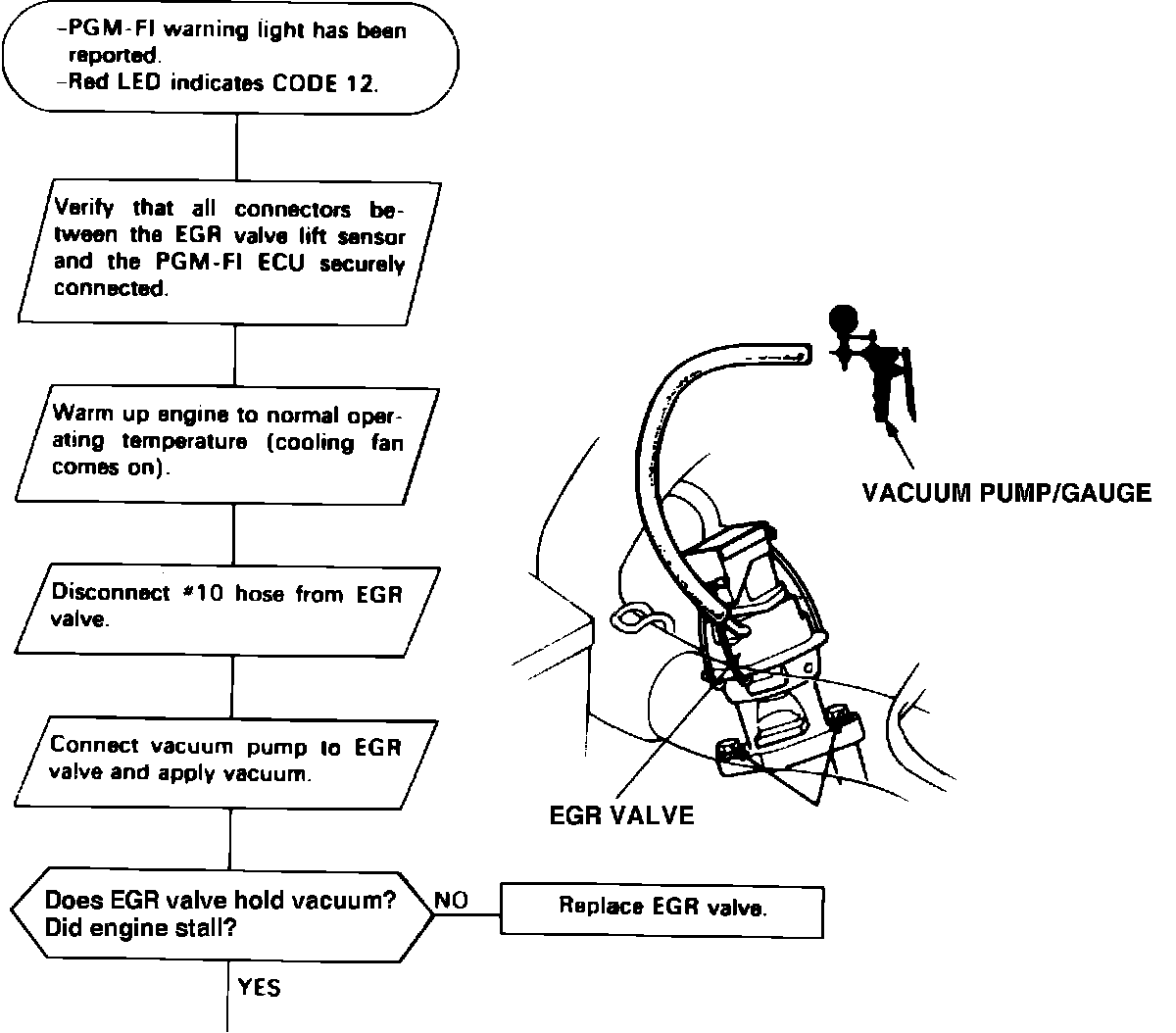

Fig. 54a Self-Diagnosis Chart. Failure Code 12 (EGR System).:

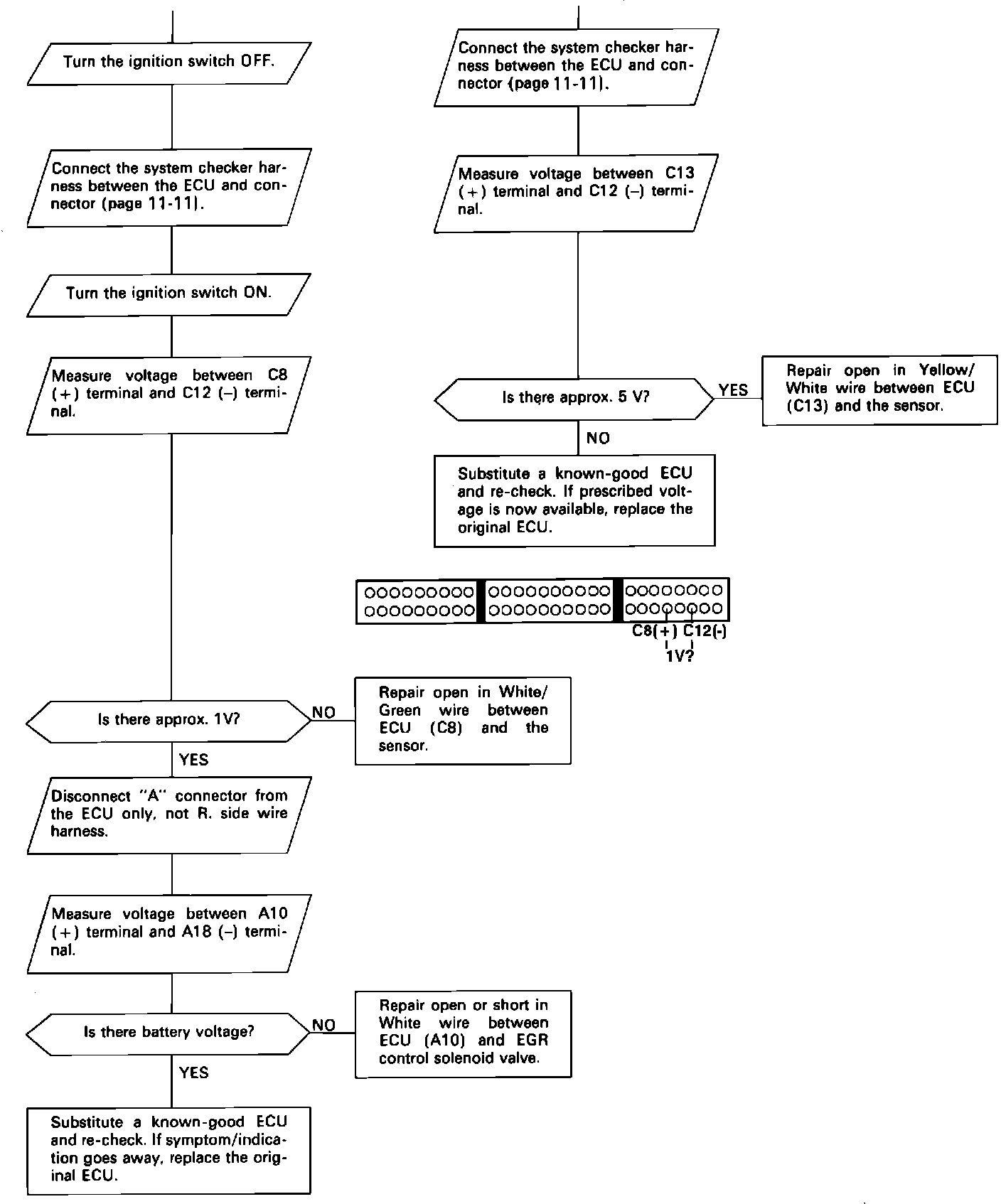

Fig. 54b Self-Diagnosis Chart. Failure Code 12 (EGR System).:

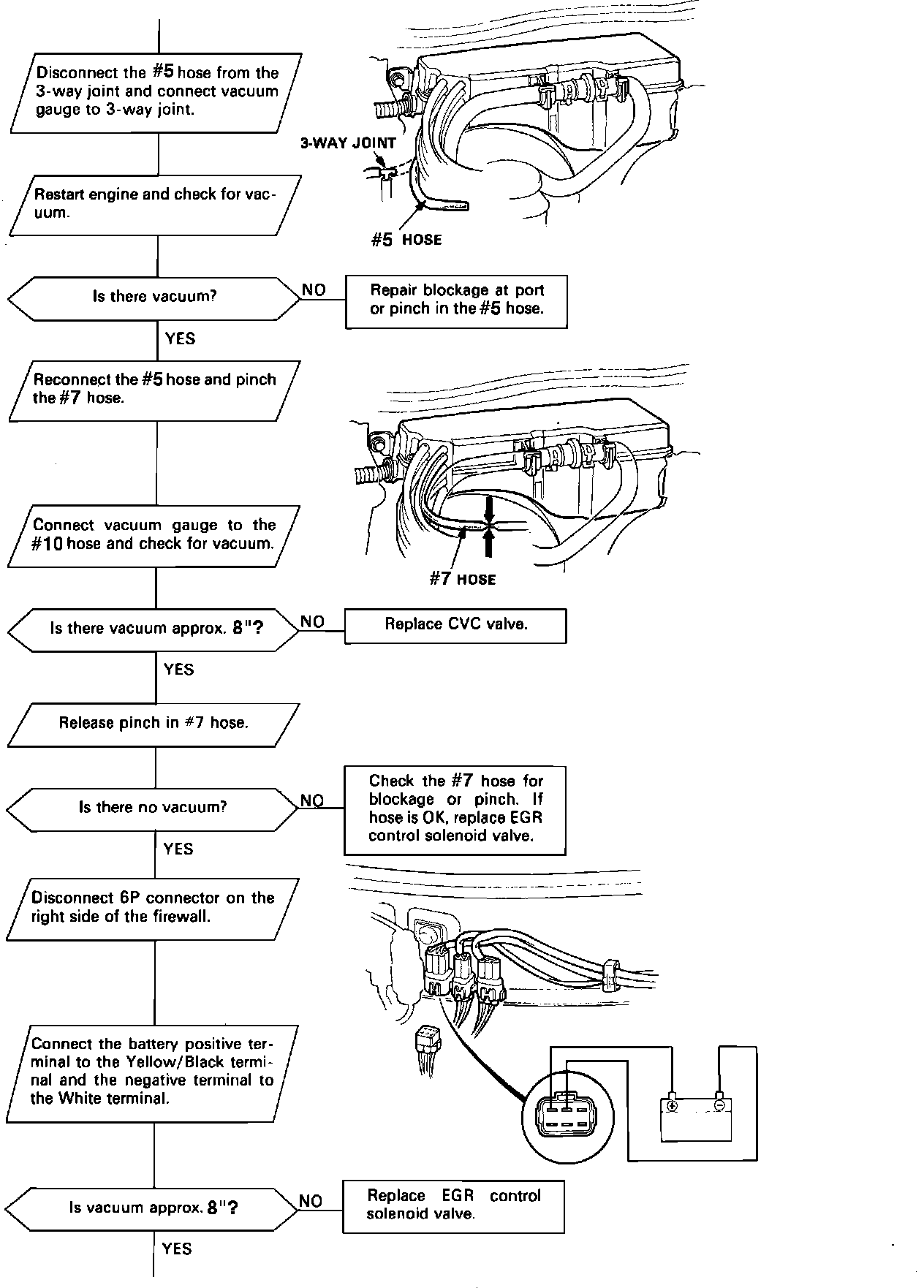

Fig. 54c Self-Diagnosis Chart. Failure Code 12 (EGR System).:

Fig. 54d Self-Diagnosis Chart. Failure Code 12 (EGR System).:
