Electrical Diagrams

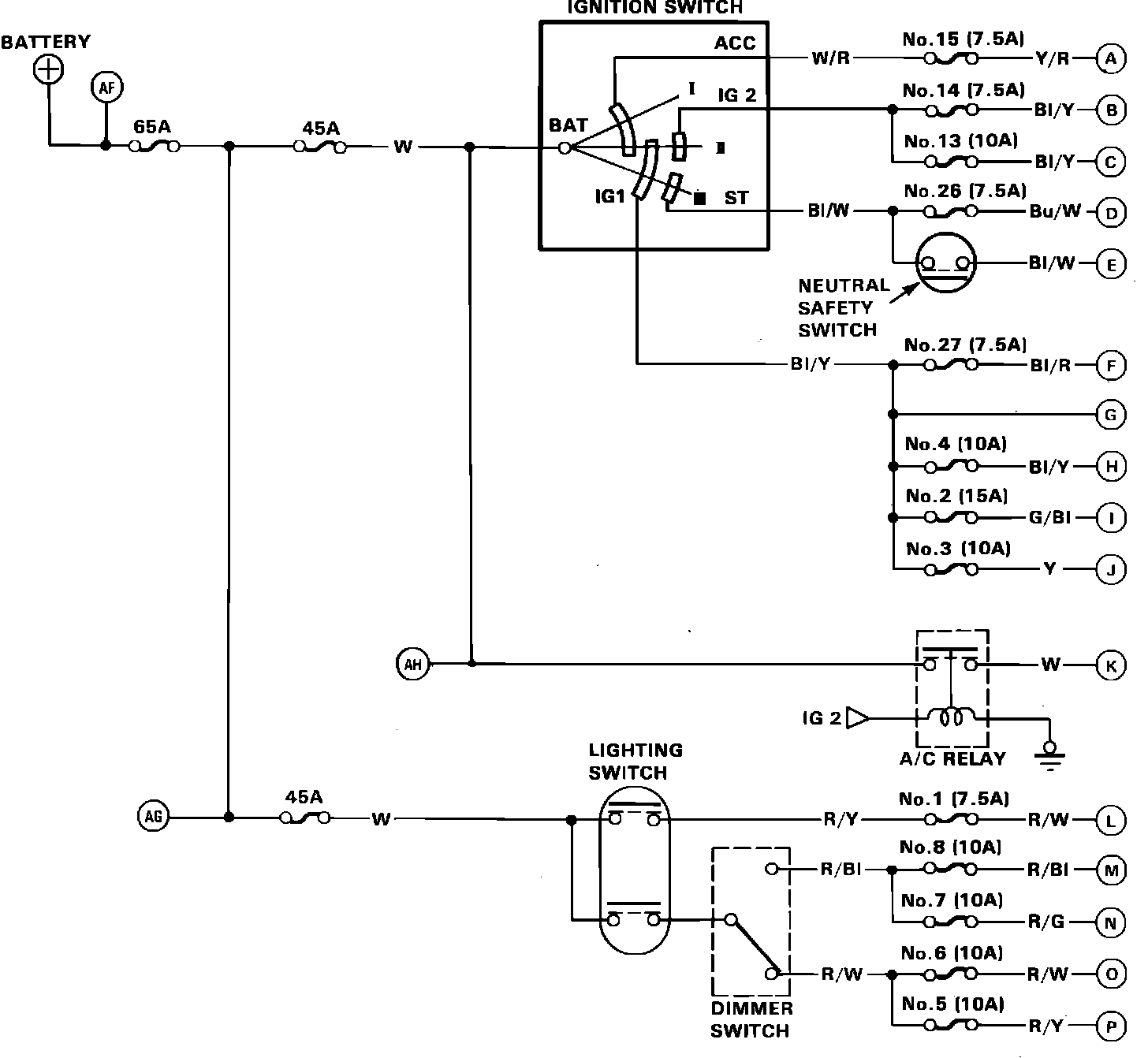

Power Distribution Wiring Circuit.:



Power Distribution Wiring Circuit.:



Power Distribution Wiring Circuit.:



Power Distribution Wiring Circuit.:
