Wiper Motor: Service and Repair

Windshield:

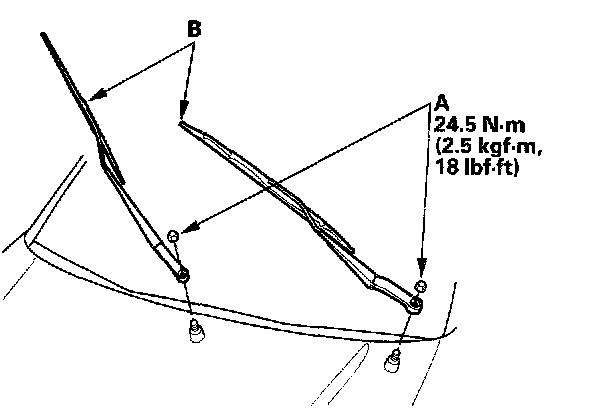

1. Remove the nuts (A) and the windshield wiper arms (B).




2. Remove the hood seal (A) and cowl cover (B).

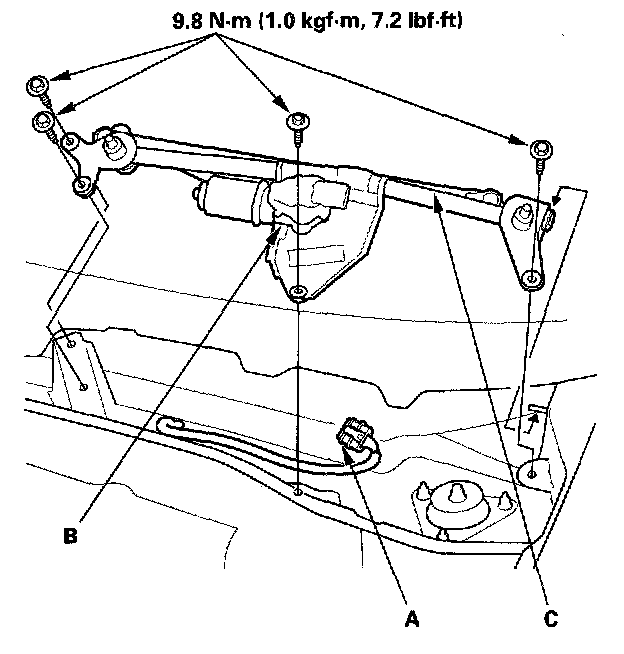

3. Disconnect the 5P connector (A) from the windshield wiper motor (B).
4. Remove the mounting bolts and the wiper linkage assembly (C).

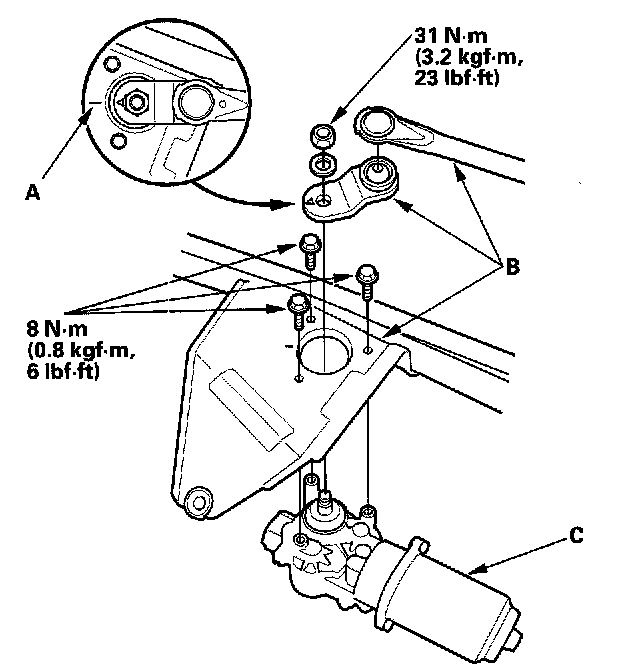

5. Scribe a line (A) across the link and windshield wiper linkage to show the original adjustment. Separate the windshield wiper linkage (B) from the wiper motor (C).
6. Install in the reverse order of removal, and note these items:
- Grease the moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace and any damaged clips.
- Check the wiper motor operation.

Rear Window:

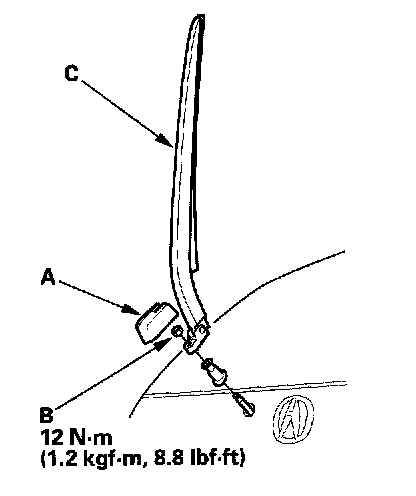

1. Remove the cap (A), mounting nut (B) and rear window wiper arm (C).
2. Open the tailgate and remove the tailgate lower trim panel.

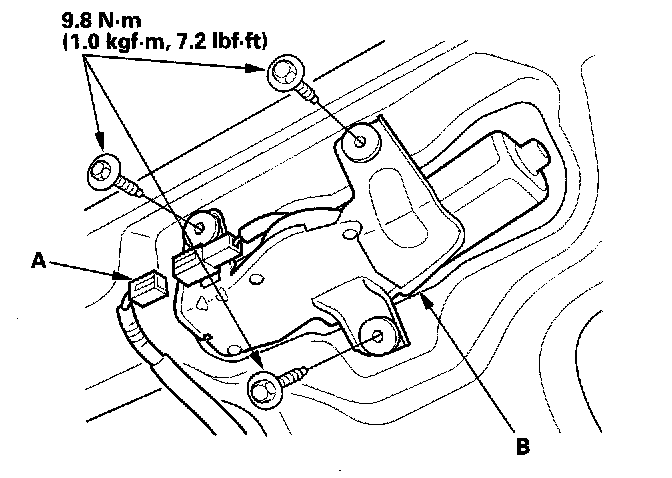

3. Disconnect the 4P connector (A) from the rear window wiper motor (B).
4. Remove the mounting bolts and the wiper motor.
5. Install in the reverse order of removal.
