Windshield Washer Motor: Testing and Inspection

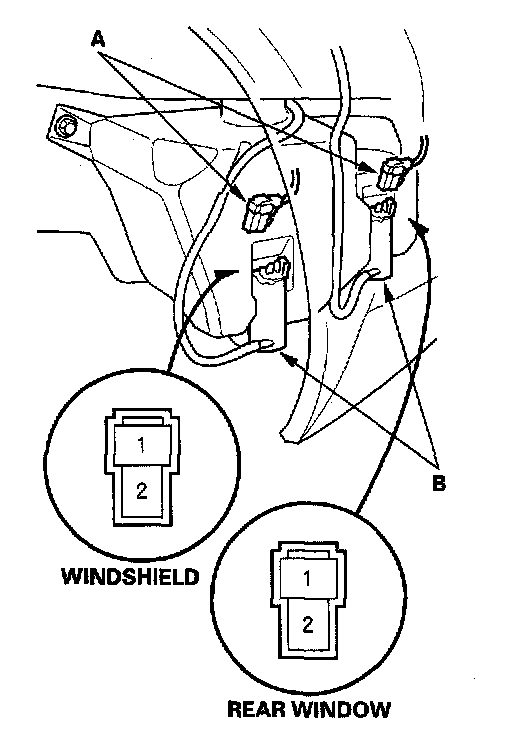

Washer Motor Test1. Remove the right inner fender.
2. Disconnect the 2P connectors (A) from the washer motors (B).
3. Test the washer motor by connecting battery power to the No. 1 terminal and grounding to the No. 2 terminal. If the motor fails to run smoothly, replace it.
