Drive Gear Replacement

Replacement

Special Tools Required
- Driver 07749-0010000
- Attachment, 24 x 26 mm 07746-0010700
- Attachment, 42 x 47 mm 07746-0010300

NOTE: Replace the transfer drive gear and transfer driven gear shaft as a set if either part is replaced.

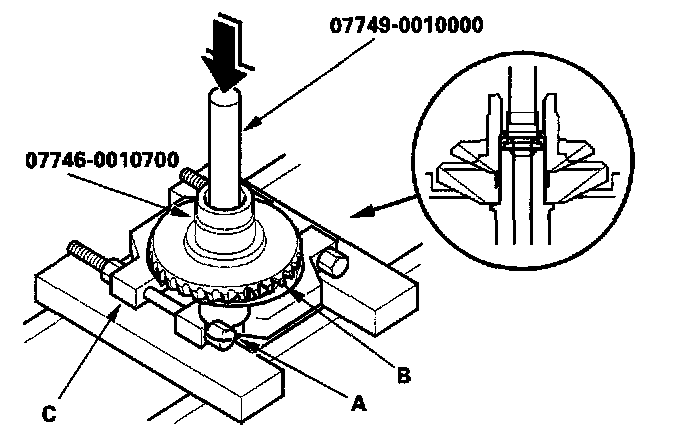

1. Remove the transfer shaft (A) from the transfer drive gear (B) with the special tools, bearing separator (C) and a press.

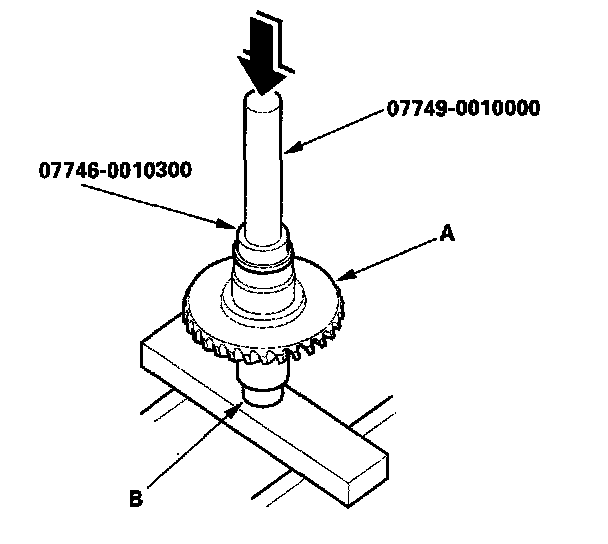

2. Install the new transfer drive gear (A) on the transfer shaft (B) with the special tools and a press.
