VTM-4 Lock Switch Test/Replacement

Test/Replacement
1. Remove the instrument panel.





2. Disconnect the 6P connector (A) from the VTM-4 lock switch (B), then remove the two screws and the switch.

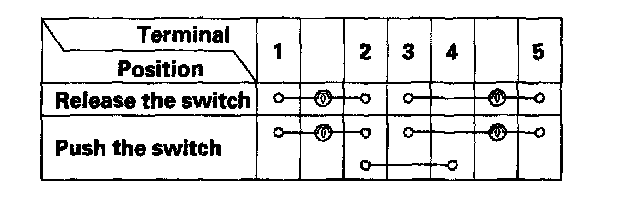

3. Check for continuity between the terminals in each switch position according to the table. If the switch fails any continuity check, replace the switch.
