Acura Truck
>>
2001
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Control Unit Inputs and Outputs
Control Unit Inputs and Outputs

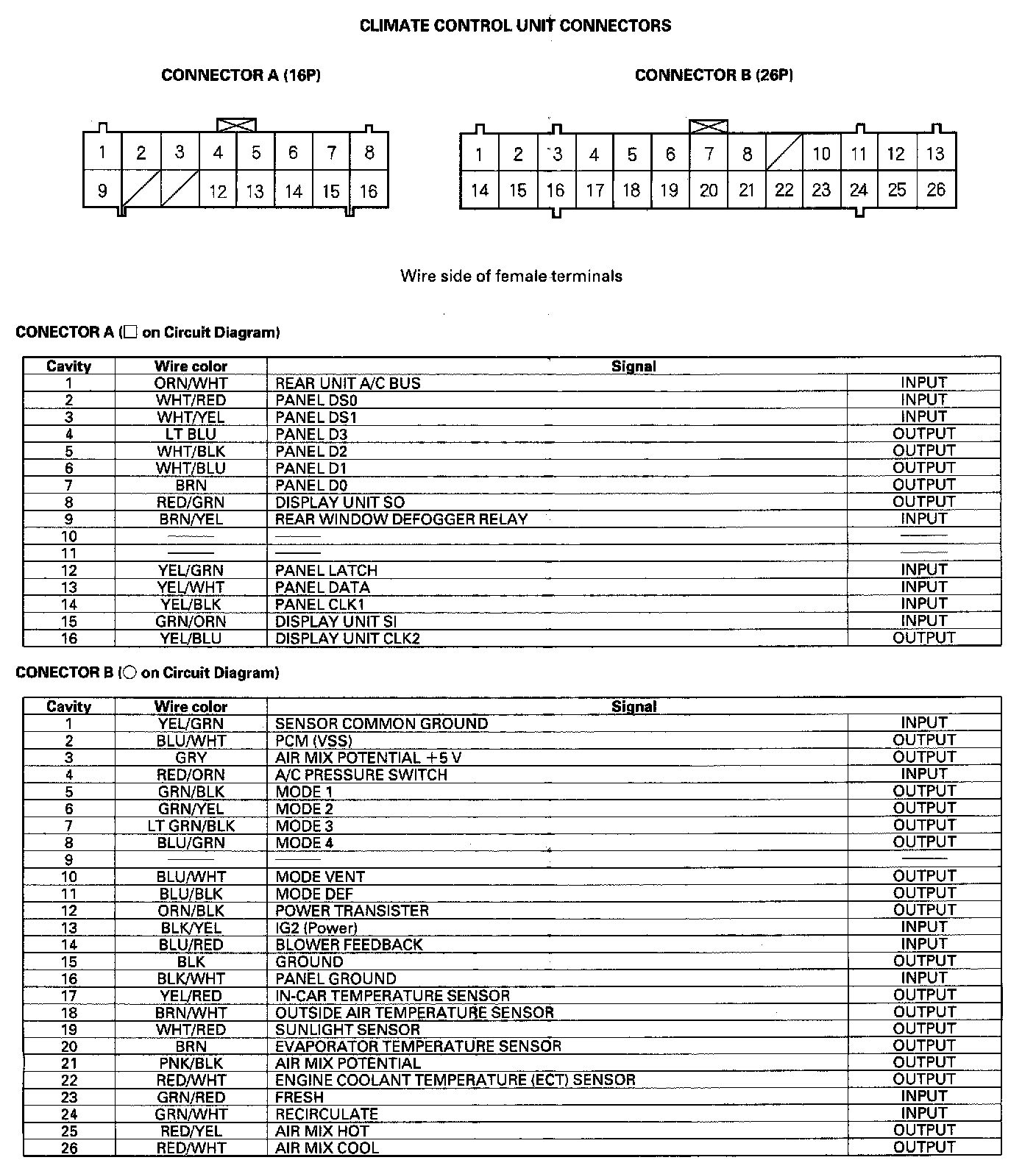

Climate Control Unit Inputs And Outputs:
