Water Pump Replacement
Water Pump Replacement1. Remove the timing belt.
2. Remove the timing belt tensioner.

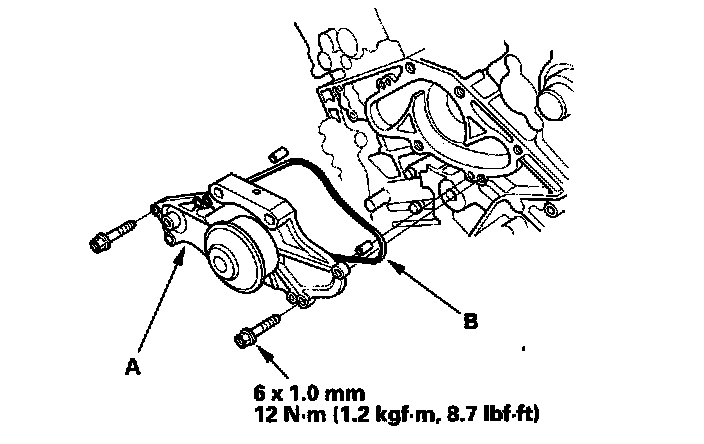

3. Remove the water pump (A) by removing five bolts.
4. Inspect and clean the O-ring groove and mating surface with the cylinder block.
5. Install the water pump with a new O-ring (B) in the reverse order of removal.
6. Clean up any spilled engine coolant.
