Radiator Fan Switch C Replacement

Radiator Fan Switch C Replacement

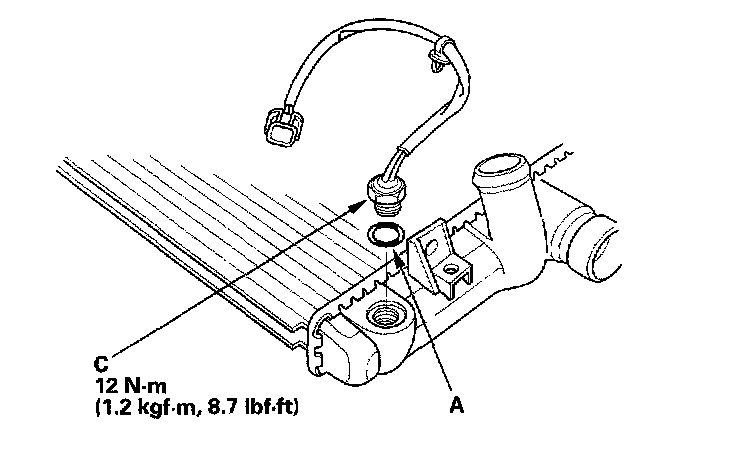

1. Disconnect the radiator fan switch C connector, then remove radiator fan switch (C).
2. Install radiator fan switch (C) with a new O-ring (A).
