Acura Truck
>>
2001
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Overhaul
>>

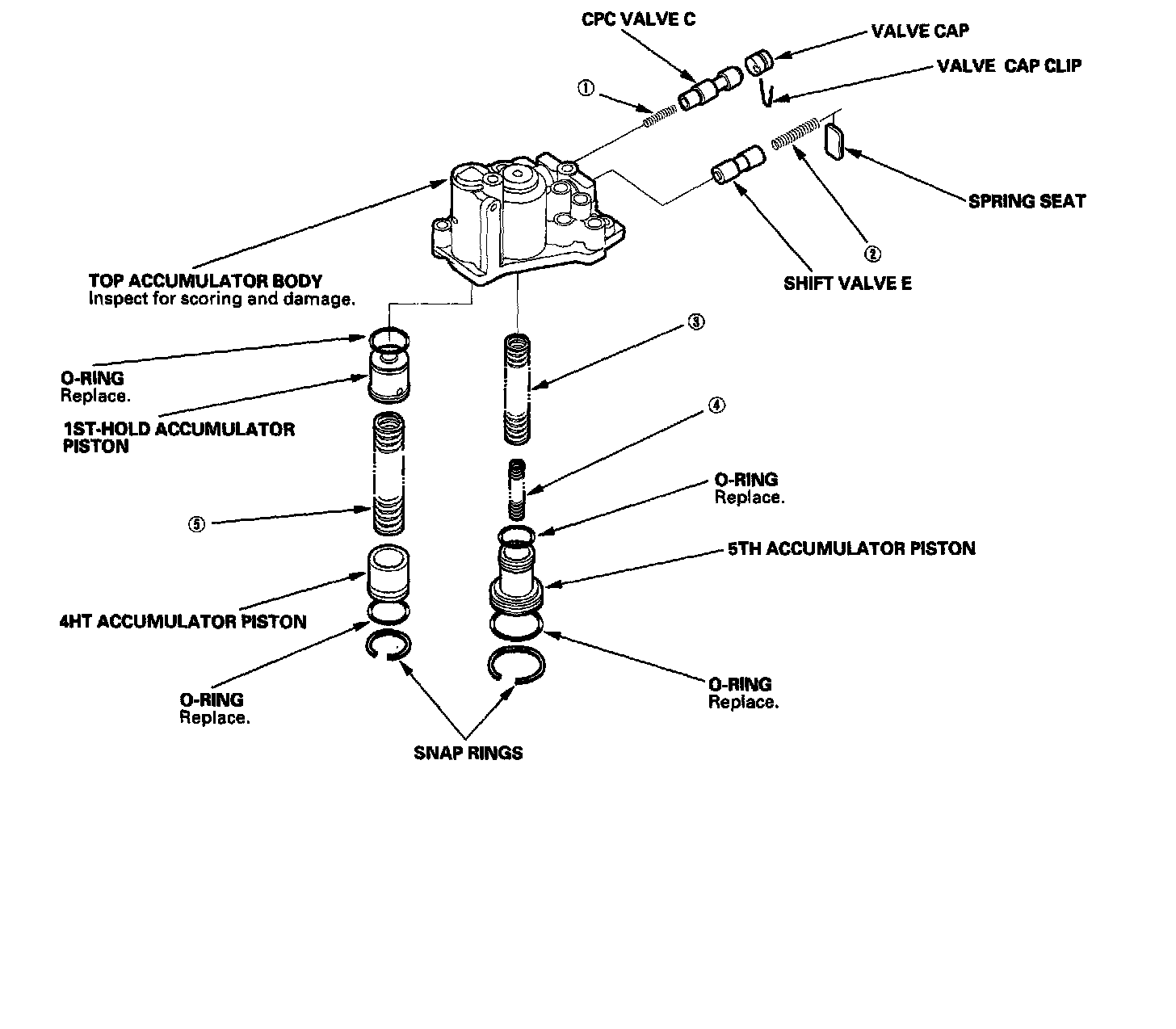

Top Accumulator Body Disassembly, Inspection and Reassembly
Top Accumulator Body Disassembly, Inspection and Reassembly
