Acura Truck
>>
2001
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Overhaul
>>

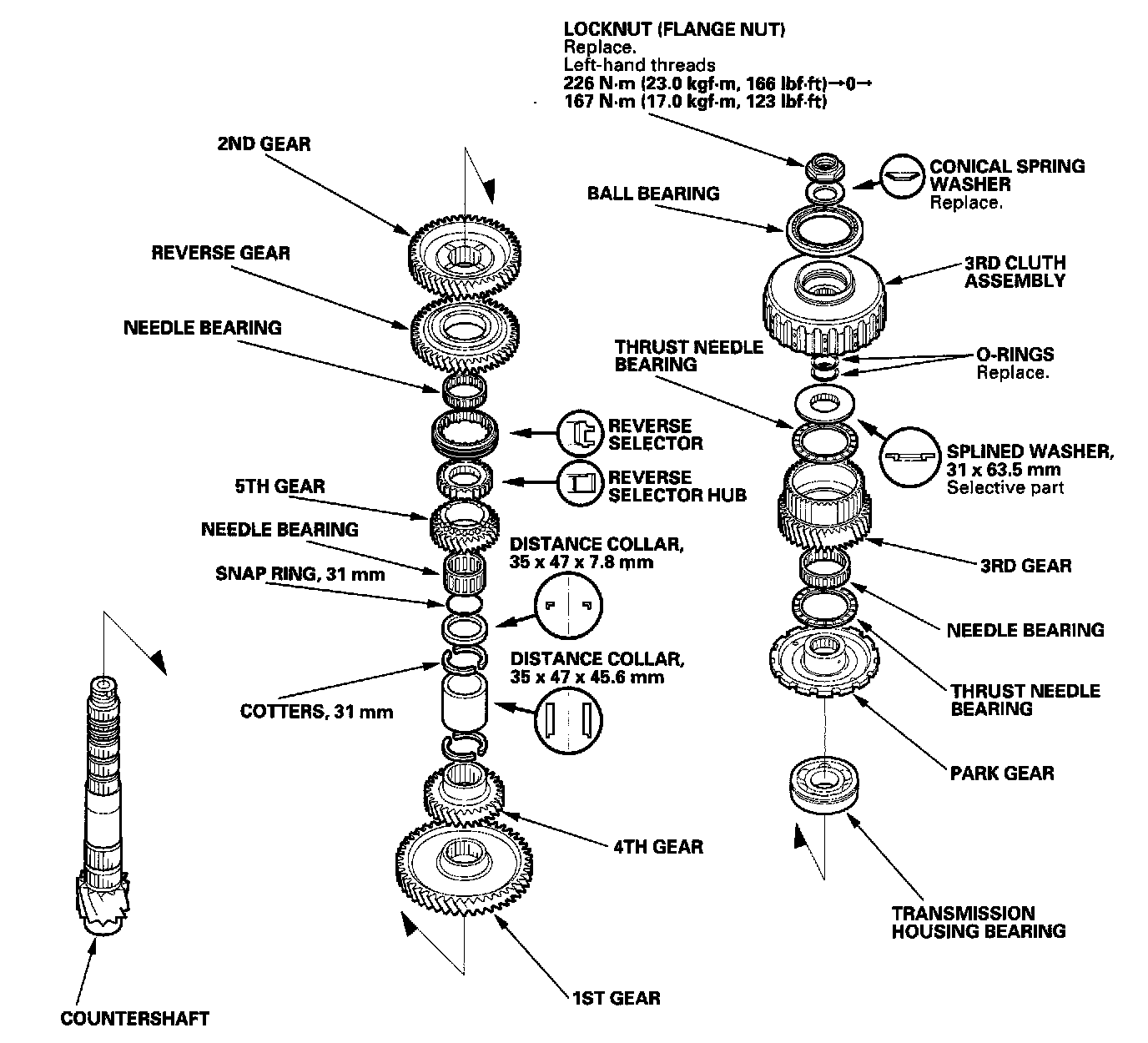

Countershaft Disassembly, Inspection, and Reassembly
Countershaft Disassembly, Inspection, and Reassembly
