Shift Solenoid, A/T
Shift Solenoid, A/T
Shift Control Solenoid Valve A:

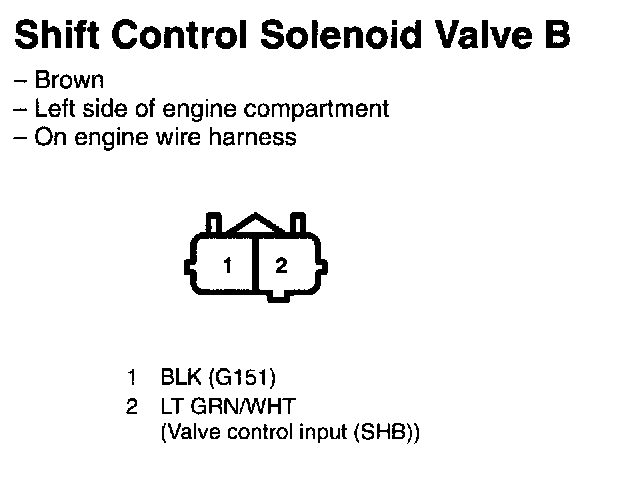

Shift Control Solenoid Valve B:

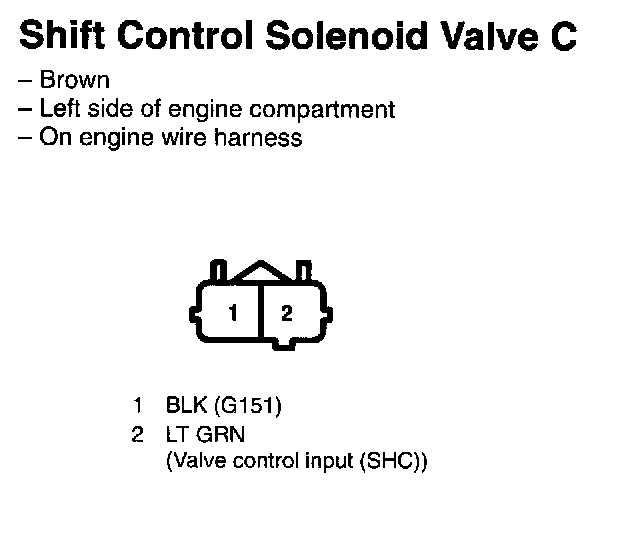

Shift Control Solenoid Valve C:

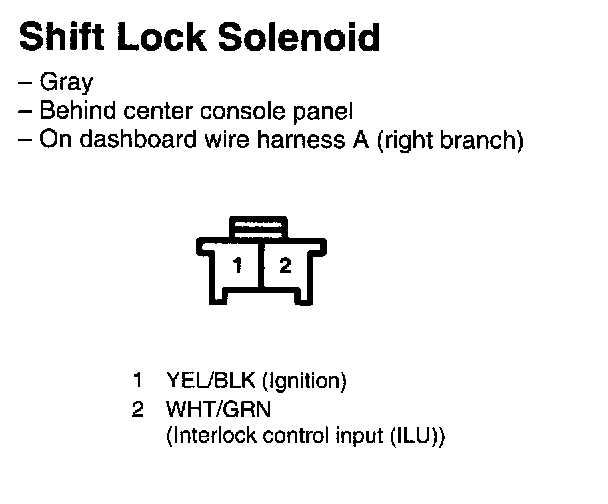

Shift Lock Solenoid:
