Acura Truck
>>
2001
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Transistor HVAC
Power Transistor HVAC

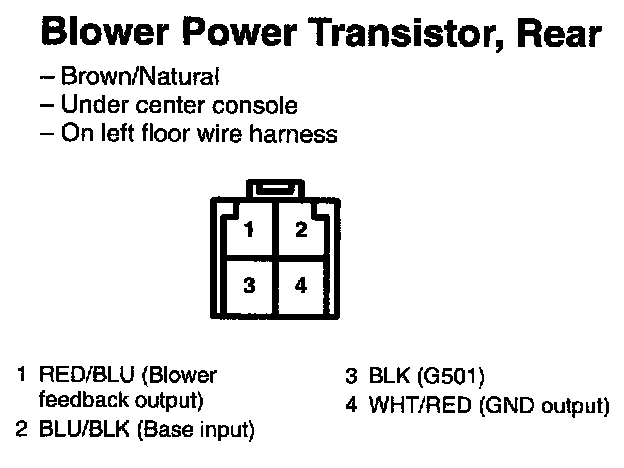

Blower Power Transistor, Rear:

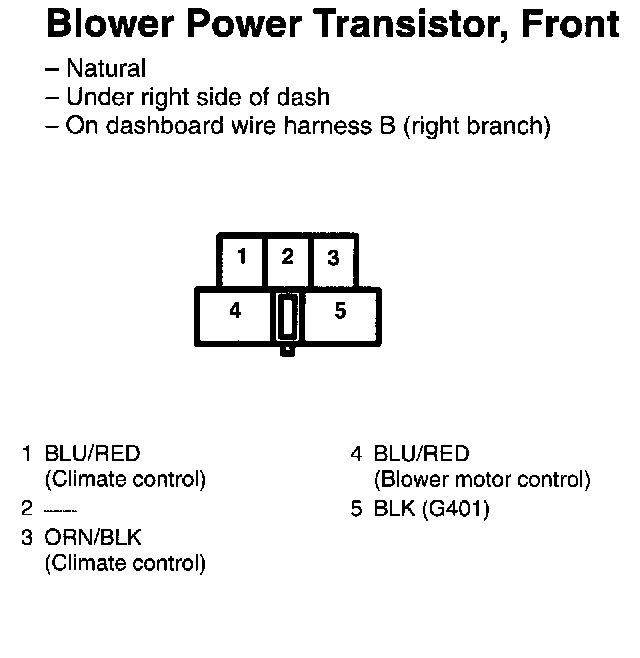

Blower Power Transistor, Front:
