Second Row Seat Armrest

Second Row Seat Armrest Replacement

NOTE: Take care not to tear the seams or damage the seat covers.




1. Detach the clips of the armrest panel (A), then pull the panel upward to release the hook (B) and remove it.

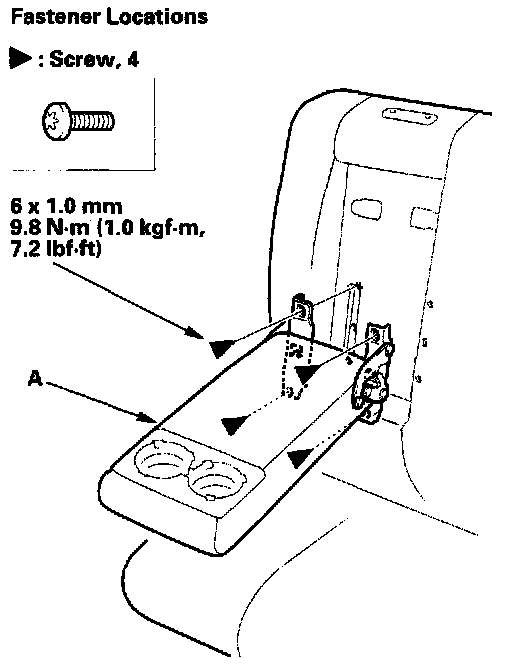

2. Using a Torx T30 bit, remove the screws, then remove the armrest (A).

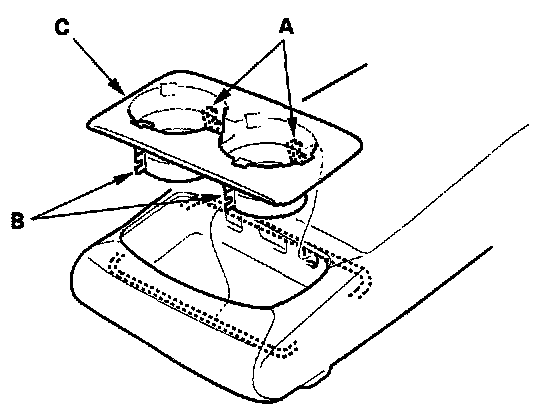

3. Pry the rear hooks (A) up, and release the front hooks (B), then remove the armrest beverage holder (C).
4. Install the armrest in the reverse order of removal, and replace any damaged clips.
