Second Row Seat
Second Row Seat Removal/InstallationNOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to scratch the body or tear the seat covers.
- Put on gloves to protect your hands.

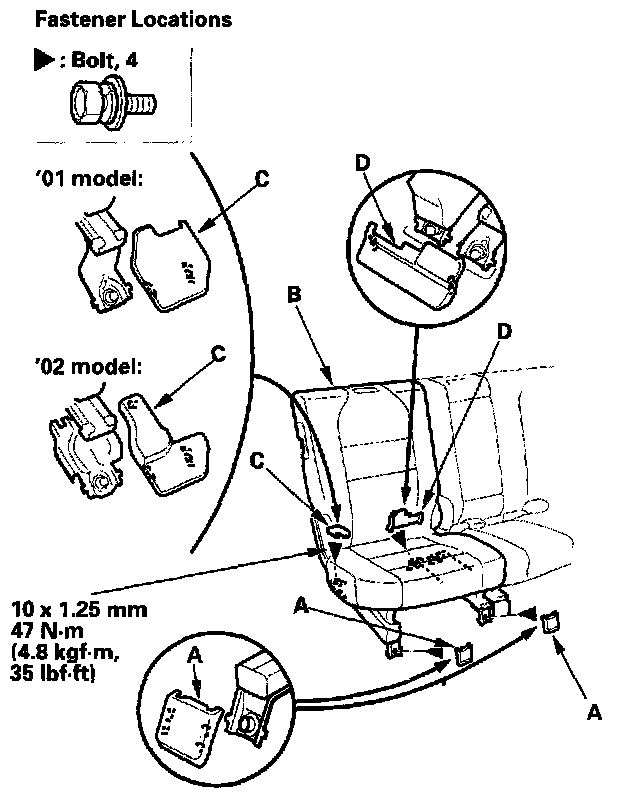

Right Second Row Seat
1. Remove the foot covers.
1. Remove the front foot covers (A).
2. Slide the right second row seat (B) forward fully, then remove the rear outer foot cover (C) and rear inner foot cover (D).
2. Slide the seat back, and remove the mounting bolts.
3. Fold the seat-back forward. With the help of an assistant, remove the right second row seat through the door opening.
4. Install the right second row seat in the reverse order of removal.

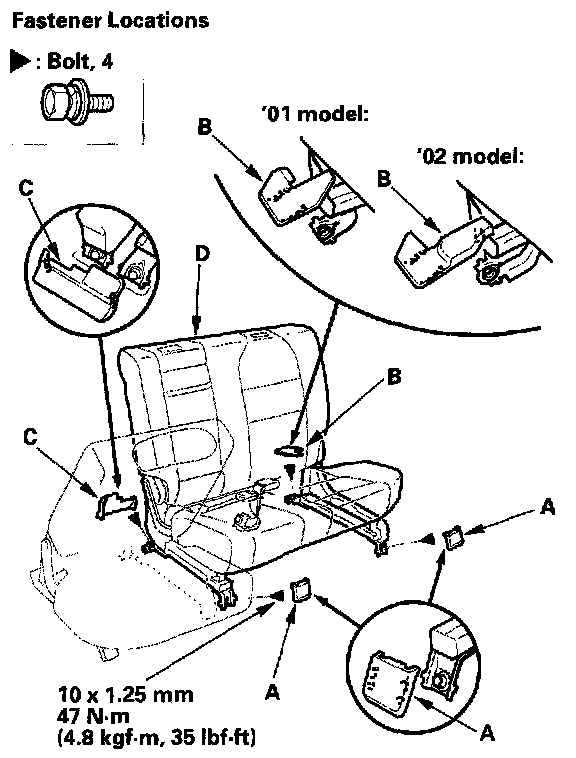

Left Second Row Seat
1. Remove the left second low seat belt center anchor bolt.
2. Slide the right second row seat forward fully.
3. Remove the front foot covers (A), rear outer foot cover (B), and rear inner foot cover (C).
4. Remove the mounting bolts.
5. Fold the seat-back forward. With the help of an assistant, remove the left second row seat (D) through the door opening.
6. Install the left second row seat in the reverse order of removal.
