Seat Temperature Element
>>
Locations
>>
Connector Locations
Connector Locations

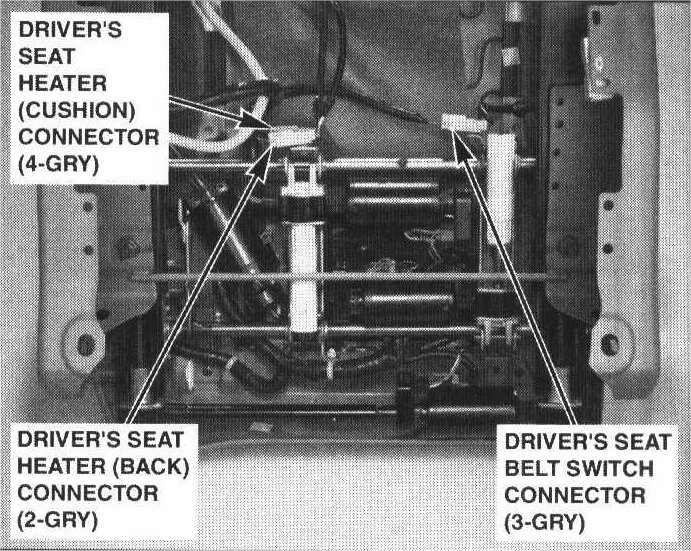

135. Under Driver's Seat (without DPMS):

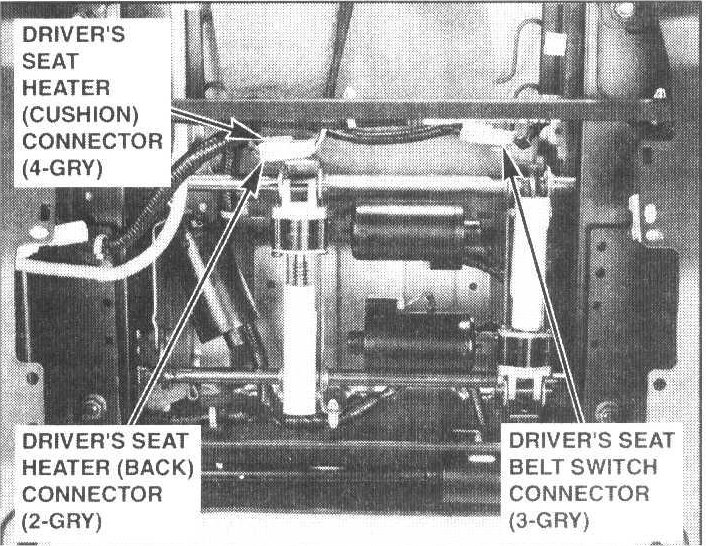

139. Under Driver's Seat (with DPMS):

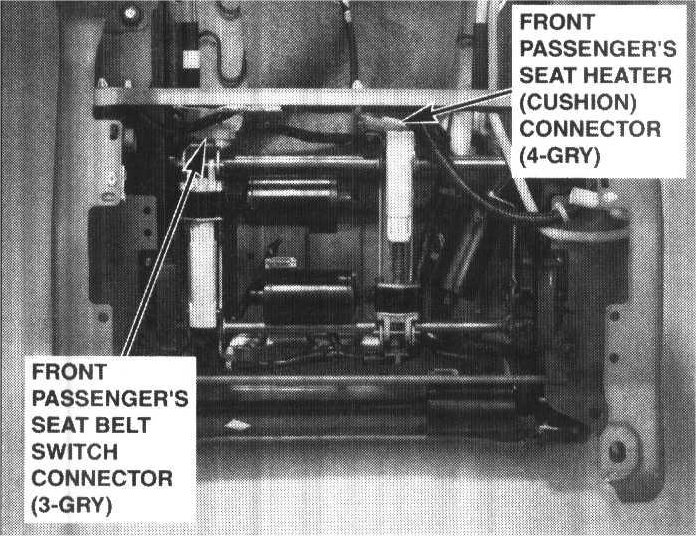

144. Under Front Passenger's Seat:
