Rearview Mirror

Rearview Mirror Replacement

NOTE: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the roof console.

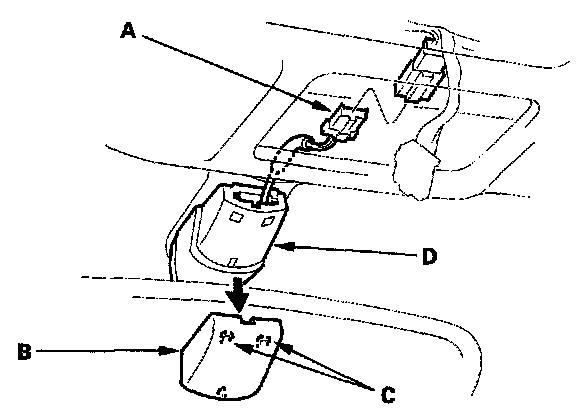

2. Disconnect the connector (A), and carefully remove the bracket cover (B) by releasing the hooks (C). Take care not to scratch the cover and mirror bracket (D).

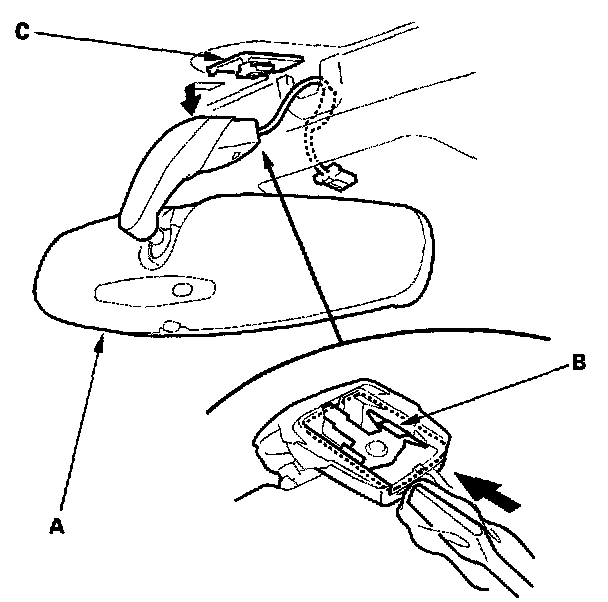

3. Slide the rearview mirror (A) forward to release the spring (B) by gently tapping the mirror bracket with a flat-tip screwdriver and a plastic hammer. Remove the mirror from the lug (C).




4. Remove the wire cover (A) from the mirror bracket (B) by releasing the hooks (C) in the sequence shown.

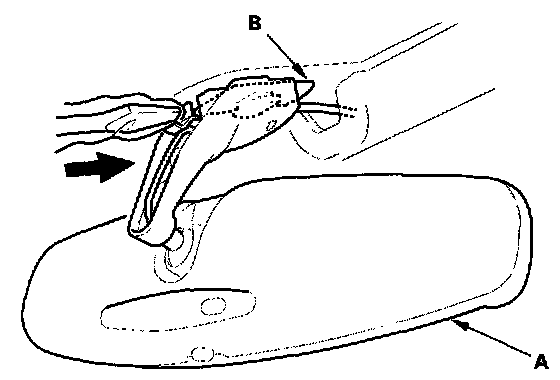

5. Install the rearview mirror (A) by sliding it over the lug (B) until the spring contacts the lug. Gently tap the mirror bracket with a flat-tip screwdriver and a plastic hammer. Be careful not to damage the wires.

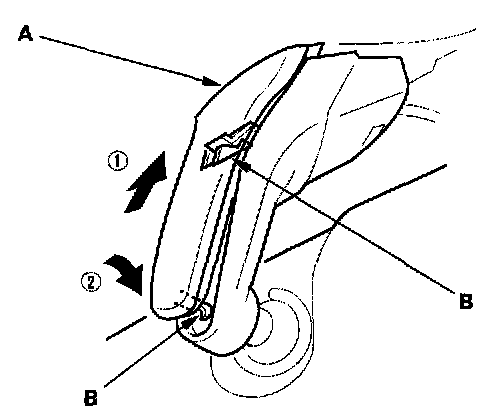

6. Install the wire cover (A) in the sequence shown. Take care not to damage the hooks (B).
7. Install the bracket cover, and connect the connector, then install the roof console.
