Dashboard Center Panel

Dashboard Center Panel Removal/Installation

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.

1. Remove the center lower cover.

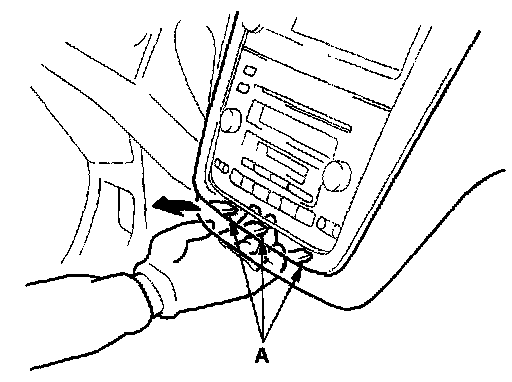

2. Push the bottom clips (A) back by hand, and pull out the bottom of the center panel.

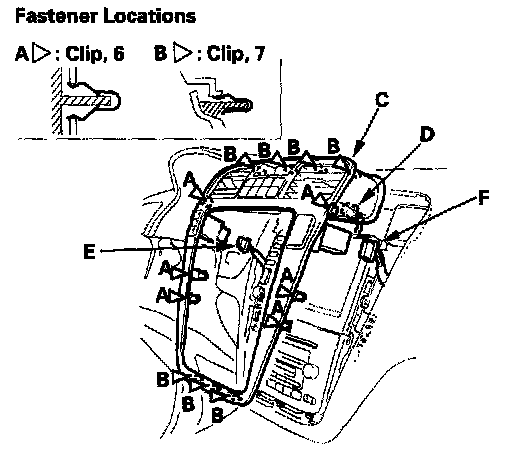

3. Carefully detach the remaining clips (A,B) by hand, and pull out the center panel (C). Disconnect the climate control panel connector (D), interior lights switch connector (E), and the hazard warning switch connector (F). Take care not to scratch the dashboard with the panel clips.
4. Install the center panel in the reverse order of removal, and make sure each connector is plugged in properly.
