Console Armrest

Console Armrest Removal and Installation

NOTE: Take care not to scratch the console and armrest.

1. Remove the console rear trim.

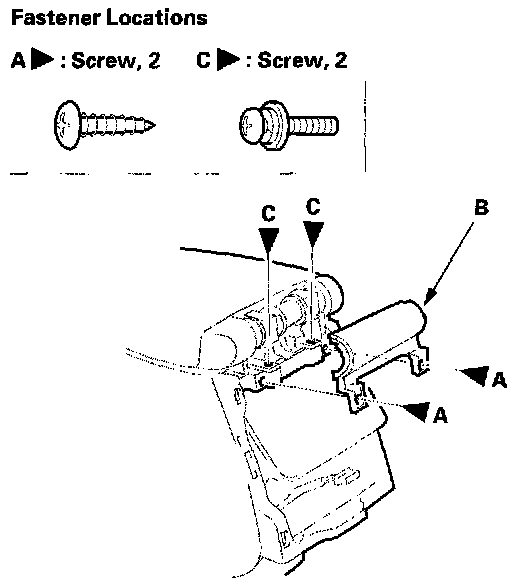

2. Remove the screws (A), then remove the rear hinge cover (B). Remove the hinge mounting screws (C).

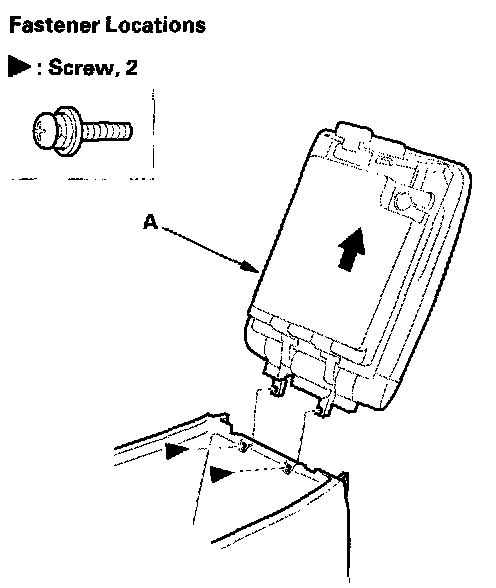

3. Open the armrest (A) and remove the hinge mounting screws, then remove the armrest.
4. Install the armrest in the reverse order of removal.
