Trip Information Function

Trip Information Function

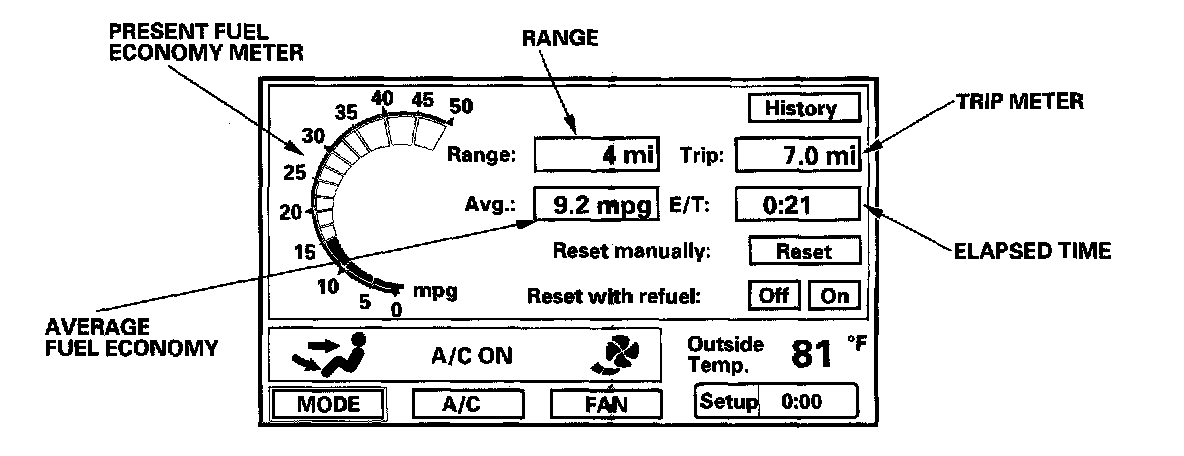

The navigation unit indicates trip information together with A/C control screen, outside temperature, and current time on the display.

Trip information shows:
- Present fuel economy meter
This meter shows the present fuel consumption. The navigation unit calculates the fuel consumption from the vehicle speed signal and the fuel injector signal.

- Range
This reading shows the distance you can drive with the fuel remaining. The navigation unit calculates the range from the average fuel economy and the remaining fuel.

- Average fuel economy
This reading shows the average fuel consumption since the last reset.

- Trip meter
This meter shows the number of miles driven since the last reset.

- Elapsed time
This reading shows you the elapsed time since the last reset.

- Reset manually
Touch the reset icon to reset all trip information.

- Reset with refuel
ON-All trip information will automatically reset each time the fuel tank is filled.
OFF-No trip information will change when the fuel tank is filled.
